PL-3.8-2A 2 Post Lift Arch Type Clear Floor Two Post Vehicle Lift

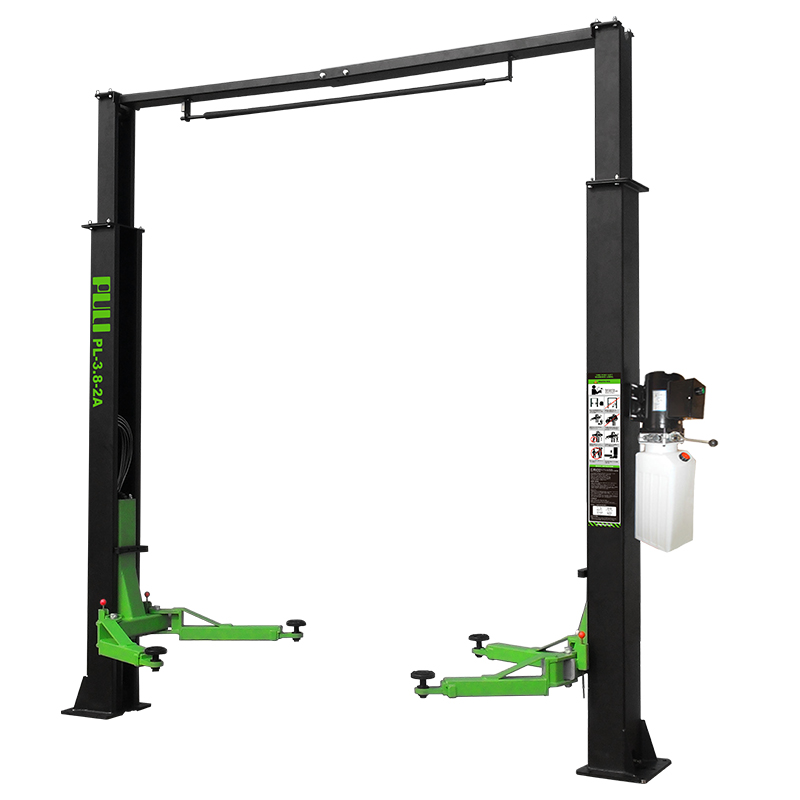

The PL-3.8-2A 2 post lift is an asymmetric clear floor two post lift that features a 4000kg lifting capacity and accommodates full-size trucks, vans, and standard passenger cars. Single-piece column construction, tubular steel lifting carriage, and direct-drive hydraulic cylinders ensure the best possible performance and reliability.

SKU: PL-3.8-2A 2 post lift Categories: ,

Description

The PL-3.8-2A 2 post lift is an asymmetric clear floor two-post lift that features a 4000kg lifting capacity and accommodates full-size trucks, vans, and standard passenger cars. Single-piece column construction, tubular steel lifting carriage, and direct-drive hydraulic cylinders ensure the best possible performance and reliability. Rotated asymmetric columns allow vehicles to be loaded with doors clear of the columns for convenient entry and exit of vehicles.
Features:
. Manual release from one side just operates the handle on the main column side to release the safety lock.
. Equip height limit switch to ensure the lifting height safely, and prevent the vehicle roof from damaging.
. The equalization of two steel cables forces both sliding blocks to move synchronously, effectively preventing the vehicle from tilting.
. The minimum height of the lifting pad is 110 mm, easily lift, and suitable for low-profile cars and SUVs.
. Equip aluminum motor and car door-opening protection as standard configuration
. Reliable oil cylinder adopts chrome-plating honed .cylinder and piston rod, with Italian seals on hydraulic rams, ensure the long service life
. Passed 115% dynamic test and 150% static test

Additional information

Product

Arch Type Clear Floor Two Post Vehicle Lift

Product Code

PL-3.8-2A 2 Post Lift

Capacity

4.0 T

Lifting height

1850mm 72.8″

Min height

110 mm 4.3"

Max car width

2576mm 101.4″

Power supply

220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW

Release

Dual manual Lock Release
