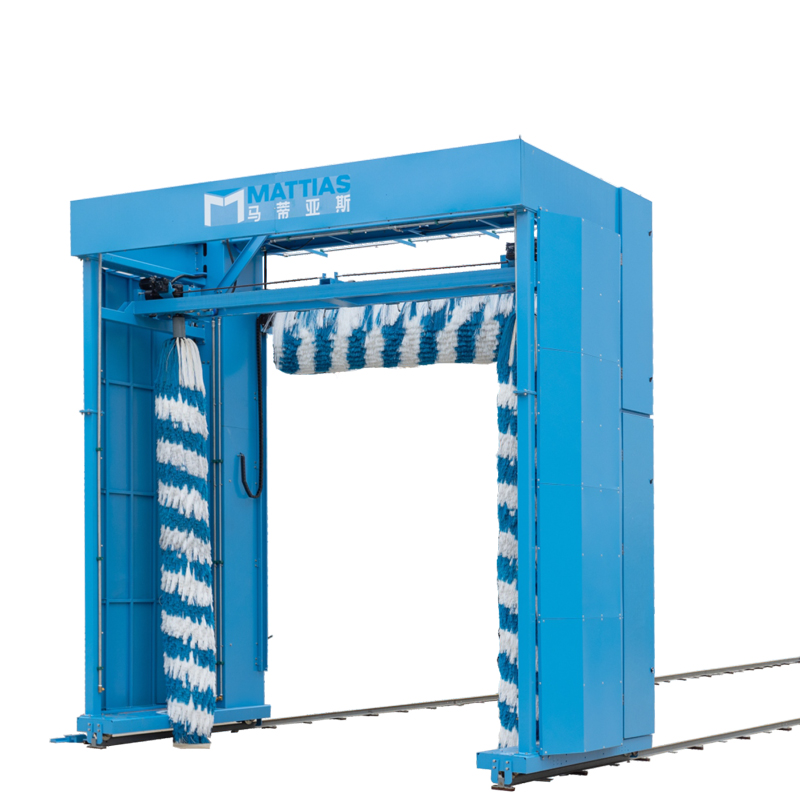

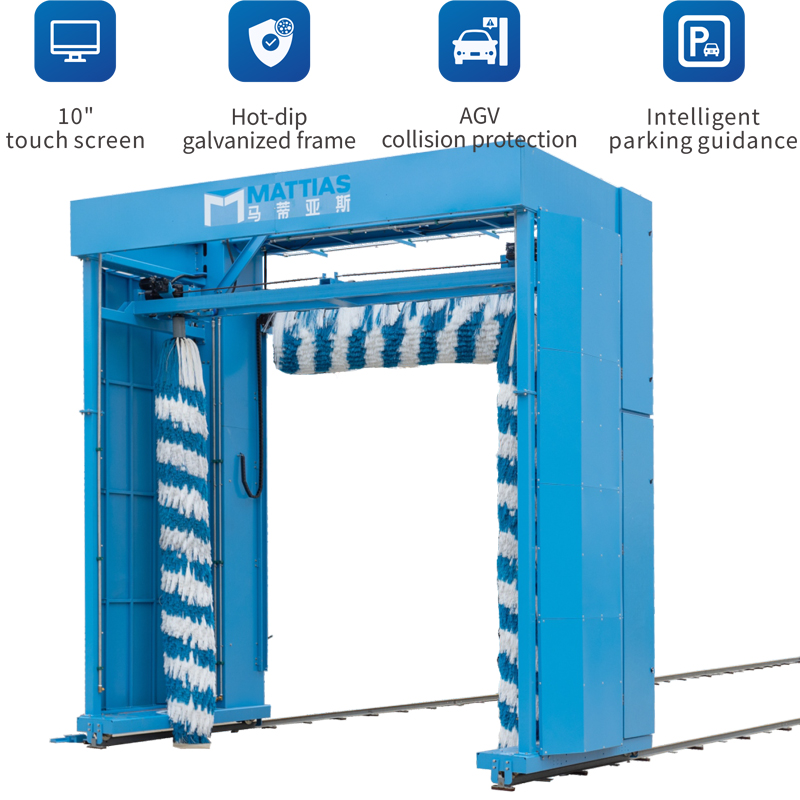

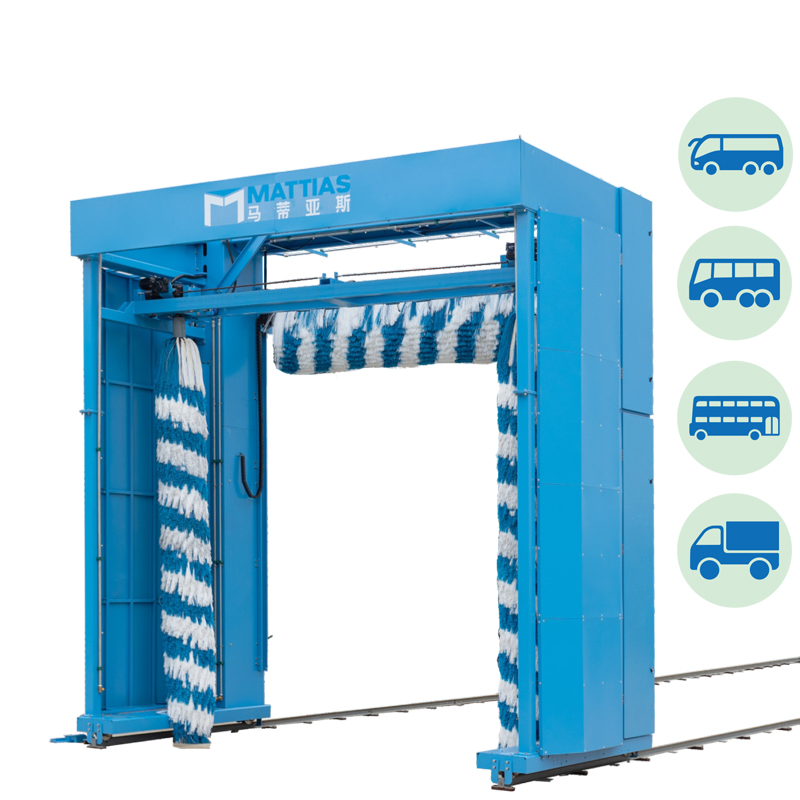

M-BS0300Y Rollover Automatic Bus Wash Machine

M-BS0300Y Automatic Bus – Truck Wash Machine is a 3 Brush Bus / Truck Wash Equipment in a Trolley Configuration. It provides flexibility to wash variety of vehicles.

Trucks

  • Fleets
  • Delivery Trucks
  • Tanker Trucks
  • Tractor Trailers
  • Garbage Trucks

Buses

  • School Buses
  • Double Decker Buses
  • Intercity Buses
  • City Buses
  • Vans
SKU: M-BS0300Y Rollover Automatic Bus Wash Machine Categories: ,

Description

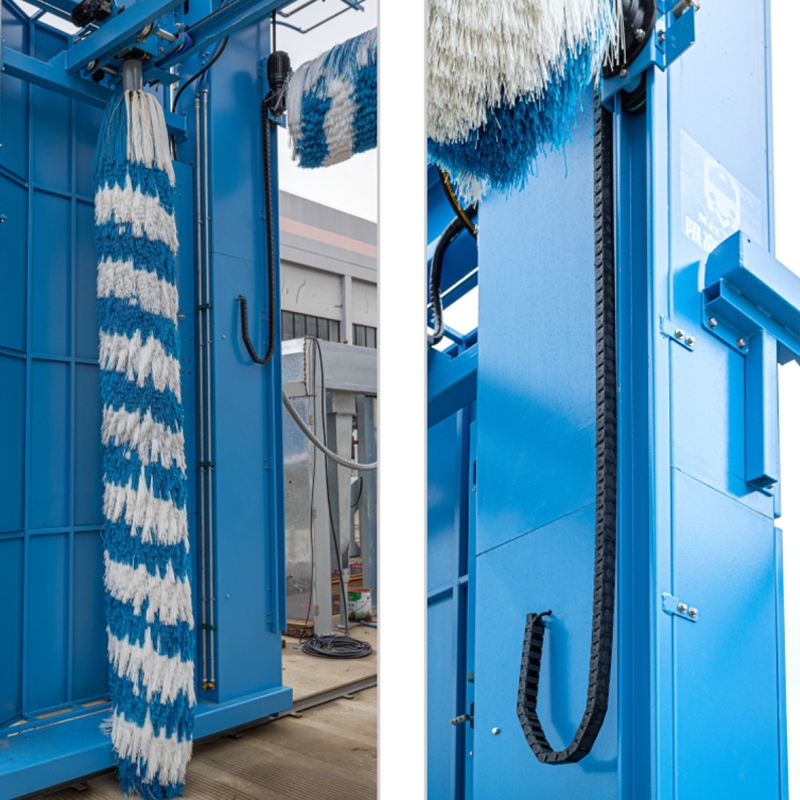

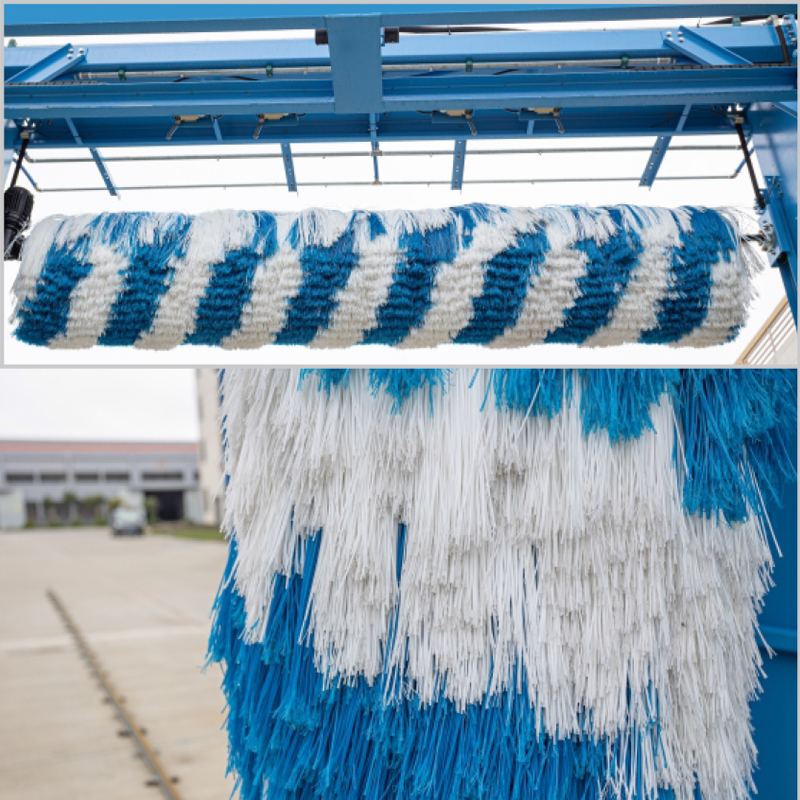

M-BS0300Y  Truck Wash Systems is an Automatic Bus / Truck Wash Equipment which comes with two hinged Brushes with Pneumatic Pressure Sensing. The Roof Brush is an optional addon which comes with Extended Mirror Program. The equipment is very easy to Operate and Maintain. 3 pressure sensing brushes ensure enough Brush pressure on the bus / Truck for proper Cleaning. The Side Brushes have the Cross Over functionality which cleans the front and the rear of the vehicle as well.

Product Features:

  • The application of advanced equipment can greatly improve the image of the store.
  • It’s available to clean 12-15 vehicles per hour, and the efficiency is significantly improved.
  • Can be used for 15 years or wash more than 500,000 cars, cost-effective.
  • The equipment uses a large number of imported components to ensure the quality of the product and a low failure rate.
  • Make customers not only make money in business but also make money steadily.
  • Comes with a fault identification code. easy to identify and troubleshoot.
  • The most convenient choice of follow-up product packages.
  • The powerful after-sales service support provides a good base for your business.

Additional information

Applicable Car Types

Buses / Large passenger transport vehicles / Container trucks (excluding roof washing)

Single Car Wash Time

10~20 vehicles / hour

Single Car Shampoo Consumption

Around 0.35mL/vehicle

Functional Configuration

Product ModelsM-BS0300Y
Brush SystemTop Brush1
Side Brush2
Small brushN/A
Material of BrushNylon brush
Wash Liquid SystemCar Wash LiquidStandard ratio pump for automatic mixing
Travel systemMotor-driven, chain-operated traveling
AGV collision protectionStandard
Control systemMitsubishi PLC control system
Remote controlOptional
Display10″ LCD Touch Screen
Car wash quantity trackingStandard
Fault self-diagnosisStandard
Smart parking guidanceStandard
Overall structureHot-dip galvanizing of welded sheet metal frames
Multi-stage submersible pumpStandard(Water pump pressure 0.6MPa)
High-pressure water pre-rinsingOptional
Intelligent low-temperature start-stop systemOptional
Voice broadcast systemOptional
Customer-supplied water tank specifications3 Tons
Customer-supplied air compressor specifications2.2kW, 120L, 0.8MPa

Technical Parameters

Applicable Car TypesBuses / Large passenger transport vehicles / Container trucks (excluding roof washing)
Max.Washable Car Dimensions(L*W*H)≤12.5 × 2.5 × ≤3.6
Single Car Wash Time10~20 vehicles / hour
Single Car Shampoo ConsumptionAround 0.35mL/vehicle
Single Car Power ConsumptionAround 2 degrees/vehicle
Single Car Power ConsumptionAround 200L/vehicle
Machine Dimensions(L * W * H)2.751m×4.62m×5.3m
Installation Dimensions(L * W * H)6m × 20m
Rail Length18m
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine:3ph AC380V 50Hz
Rated Power of Machine:8.15kW
Power of Top Brush Rotation Motor1.1kW*1
Power of Top Brush Lifting Motor0.75kW*1
Power of Side Brush Rotation Motor1.5kW*2
Side Brush Opening and Closing Motor0.18kW*2
Small Brush MotorN/A
Travelling Motor0.37kW*2
Submersible Pump Motor2.2kW*1
Water Pump Pressure0.6MPa
Power of High-pressure Water Pump Motor4kW*1(Optional)
Pressure of High-pressure Water Pump2MPa(Optional)
