HG-E3990D Wireless Mobile Electric Battery Powered Oil Pump Unit

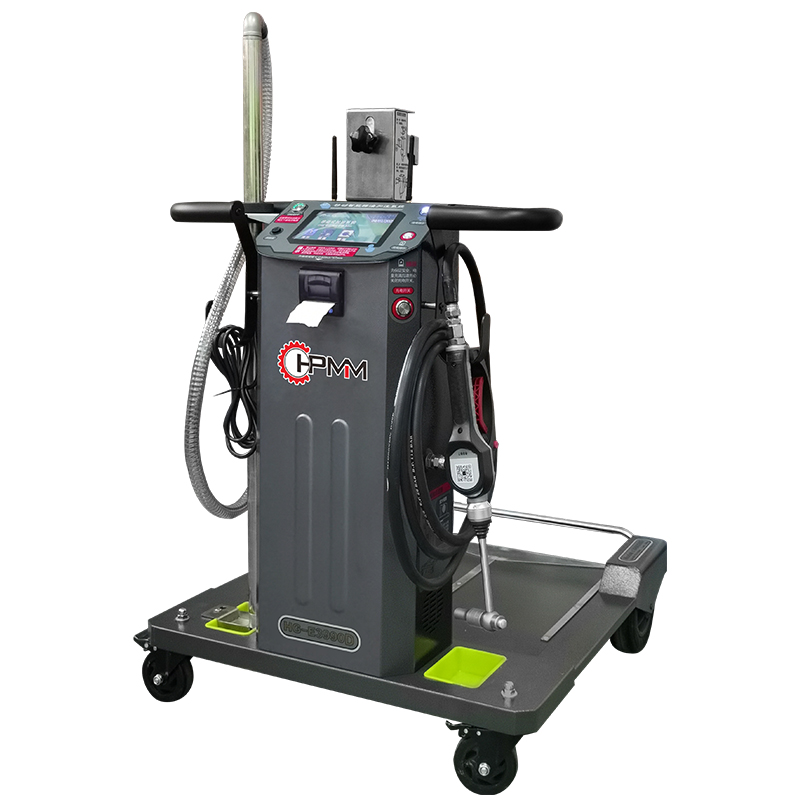

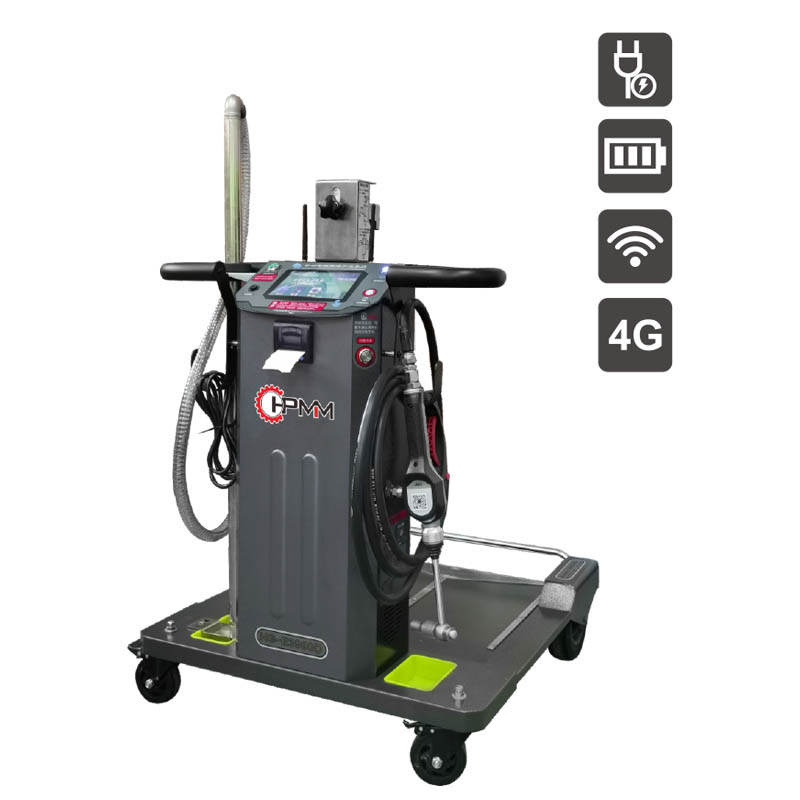

HG-E3990D wireless mobile pneumatic battery-powered oil pump unit is a wireless mobile electric oil pump unit with a special oil drum locking mechanism, wear-resistant guide mechanism, patented heavy-duty trolley design, dual power mode, 7-inch industrial touch screen, human-machine interaction, mobile app and computer terminal control, ergonomic handrail, universal wheel, and built-in wheels to prevent oil and water splashing. It has a load capacity of 260kg.

SKU: HG-E3990D Wireless Mobile Electric Battery Powered Oil Pump Unit Categories: ,

Description

1. Oil Drum Locking Mechanism
Equipped with a special oil drum locking mechanism.

2. Guide Mechanism
Wear-resistant, scratch-resistant, easy-to-load and unload oil drum guide mechanism.

3. Patented Heavy Duty Trolley Design
The unique tilting as assembly function of the heavy-duty trolley allows the residual oil in the drum to be pumped clean, without wasting oil.

4. Oil Drum Locking Mechanism
Equipped with a special oil drum locking mechanism.

5. Guide Mechanism
Wear-resistant, scratch-resistant, easy-to-load and unload oil drum guide mechanism.

6. Patented Heavy Duty Trolley Design
The unique tilting assembly function of the heavy-duty trolley allows the residual oil in the drum to b pumped clean, without wasting oil.

7. Dual Power Mode
Dual power automatic switching design. Automatic and seamless conversion between AC and battery power.

8. 7-inch Industrial Touch Screen
Large screen display, simple and convenient operation via touch screen.

9. Human-machine Interaction
Available to record customer’s license number, preset recharging amount, and other useful functions.

10. Mobile APP And Computer Terminal
Oil recharging operation can be controlled via APP and PC software. Stable signal, and no data drops.

11. Ergonomic Handrail
Ergonomic handrail with soft protective cover

12. Universal Wheel
Universal wheel in Φ200*60 diameter is noiseless and capable of carrying a load, with double axles and top brake.

13. Built-in Wheels
The built-in wheels are designed for preventing oil and water from splashing on the floor and contaminating the equipment when moving.
The load capacity is rated at 260kg.

Additional information

Model

HG-E3990D Wireless Mobile Electric Battery Powered Oil Pump Unit

Voltage

220V/50HZ/DC12V

Power of oil pump

150W

Flow range

1-6L/min.

Filling accuracy range

0.2%

Minimum working pressure

0.7Bar

Inter face thread standard

1/2“BSP

Oil pump outlet flow rate

≤8L/min.

Bearing

260KG

Capacity of lithiumiron phosphate battery

10AH

Charging current

3A
