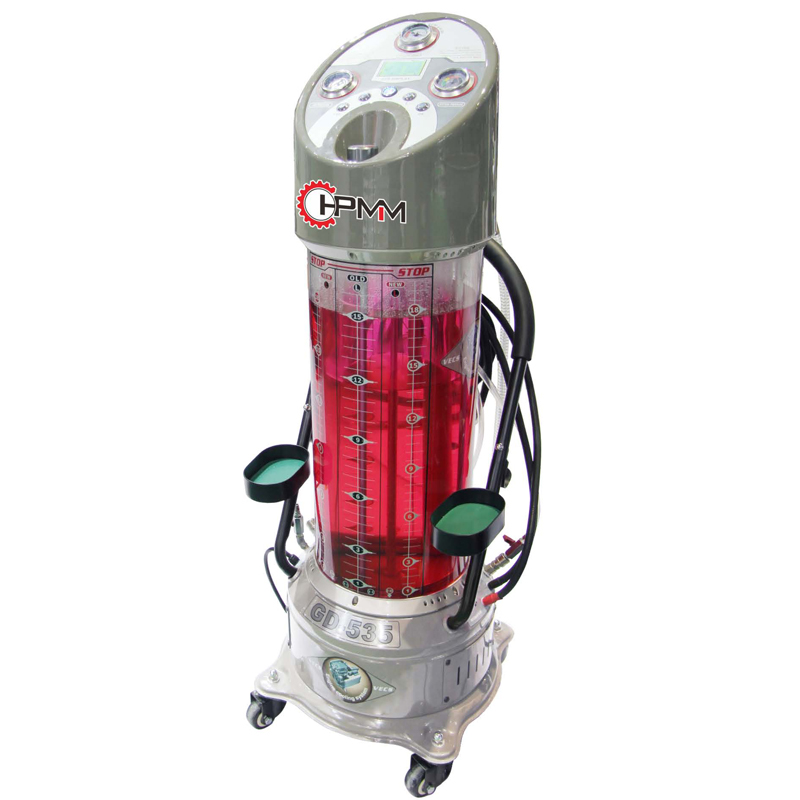

GD-535 Coolant Exchange Machines

GD-535 electric coolant exchanger is designed to efficiently manage coolant. It effectively recycles waste coolant while introducing new coolant, all through a rapid exchange process. The system includes a convenient leak-check feature and is user-friendly. Its dual pumps ensure the separation of new coolant from used coolant, and its unique double-wall tank design further sets it apart. Our GD-535 electric coolant exchanger can complete the exchange of vehicle coolant in a very short time. Equipped with LCD screen, convenient, practical, and easy to operate.

SKU: GD-608 ATF Exchanger-1 Categories: ,

Description

GD-535 electric coolant exchanger is designed to efficiently manage coolant. It effectively recycles waste coolant while introducing new coolant, all through a rapid exchange process. The system includes a convenient leak-check feature and is user-friendly. Its dual pumps ensure the separation of new coolant from used coolant, and its unique double-wall tank design further sets it apart. Our GD-535 electric coolant exchanger can complete the exchange of vehicle coolant in a very short time. Equipped with LCD screen, convenient, practical, and easy to operate.

Features:

1) Clear marks of liquid inlet/outlet hose

2) Automatic exchange of new/used coolant

3) LCD screen allows easy operation

4) Pressure test for checking leaks as standard configuration to improve maintenance efficiency

5) Multiple adapters fit to large numbers of vehicle in European, American or Asian markets, etc.

6) Improve several functions of the manual model like improving the coolant replacement rate

7) Shorter time plus higher coolant replacement rate

Additional information

Voltage

DC12V(AC220V optional)

Power

120W

Working pressure of exchanging

≤1.5Bar

Working pressure of leak checking

<1.2Bar

Leak check hose length

2.5m

Recharge/return hose length

2m

Capacity of new coolant tank

Max.20L

Max. pumping capacity

Max.7.0L /Min
