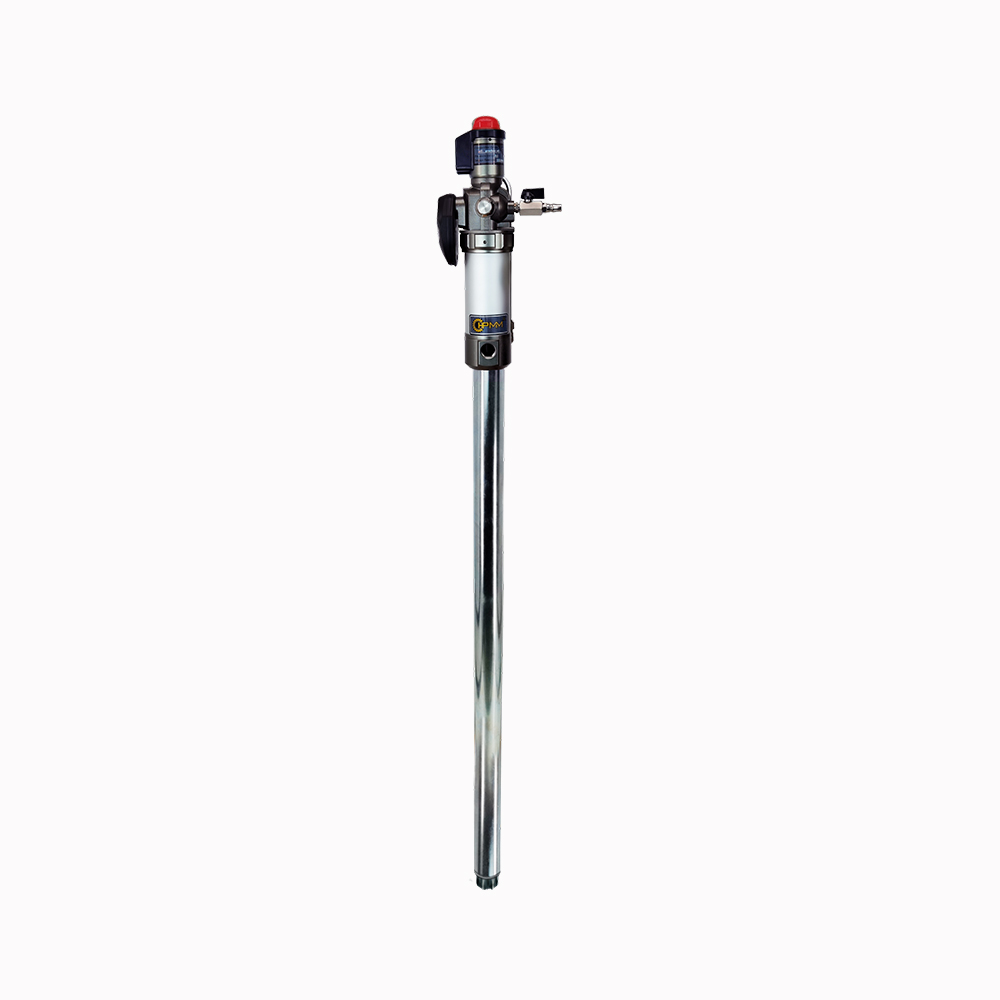

90031940C Pneumatic Oil Pump With Pilot Lamp and Recorder

90031940C Pneumatic Oil Pumps are modular designs that Freely match the required combination, delivering fast & precise flow rates. This Smart design uses fewer parts for less pump wear & tear, making it easy to use & maintain. This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include motor oil, synthetic oil, hydraulic oil, grease, oil, and ATF.

SKU: 90031940C Pneumatic Oil Pump Categories: ,

Description

1. Brand new pumping technique
Compared with the conventional technique, the new pumping unit provides a smoother and lower-noise operation than never.
Compression ratio: 3:1
Flow rate: up to 22L/Min.
Air pressure:4-8bar
Suction pipe: Φ46mm

2. Modular design Freely match the required combination

PilotLamp
Muffler&Shield
Oil Mist Separator
Multi-purposed Recorder

3. Muffler&Shield
Not only a muffler
The muffler acts as a shield to guide the oil mist blowing direction to avoid corrosion of metal mechanisms
360°rotatable

4. Reach deeper
Available to extract THE MOST oil from the bottom of the tank by its specific pipe end design, a filter included.
Depth of residual oil
Based on testing results
New model
Conventional model

5. Variety of color pilot lamps are available
The perfect partner to identify different brands of oil, and observe the working state.
Pilotlamp powered by clean energy.
No electricity use, no power consumption.

6. Oil mistlubricator/regulator
1. Working pressure can be adjusted.
2. Equip this unit to make the oil pumping process go more smoothly.
3. Ensure longer service life of oil

7. Millions of storage capacity multi-purposed memory

1. Check usage record
2. Check the working status
3. Millions of storage capacity

Additional information

Model

90031940C

Airpressure

4~8bar

Max. outputoilpressure

24bar

Max. flowrate

22L/min.

Suctionpipe(length)

940mm

Suctionpipe(Φ)

46mm

Airinlet

Quick connector

Oil side connection(outlet)

1/2"BSP

Voltage(pilotlight)

DC3~6V
