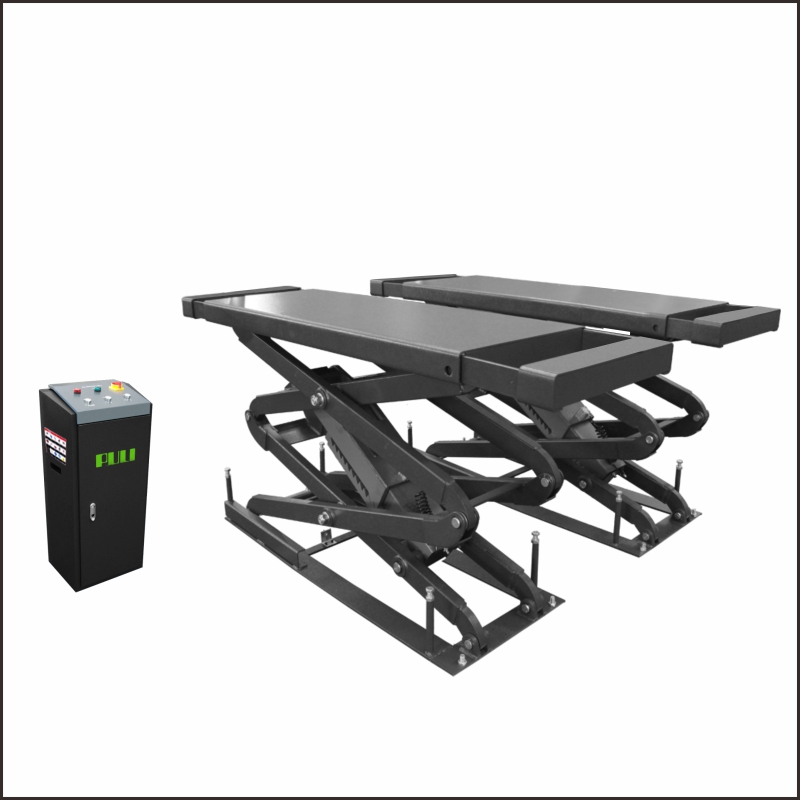

3.0 T Capacity Scissor Lift PL-E30 Scissor Lift

PL-E30 flush mount scissor lift with control cabinet. 3000kg lifting capacity with Hydraulic power system, dual synchronous cylinders, extendable platforms, automatic safety device, and mechanical safety locks. Includes stop switch ground and alarm tone when coming down to the ground.

SKU: PL-E30 Scissor Lift Categories: ,

Description

PL-E30 flush mount scissor lift with control cabinet. 3000kg lifting capacity with Hydraulic power system, dual synchronous cylinders, extendable platforms, automatic safety device, and mechanical safety locks. Includes stop switch ground and alarm tone when coming down to the ground.

Features:
1. Precision machined safety lock
2. Safety descending stop & alarm
3. Safety valve for anti-explosion of hydraulic system
4. Height limit switch
5. EVA Rubber mat (4pcs/set)

Additional information

Product

Scissor Lift

Product Code

PL-E30 Scissor Lift

Capacity

3.0 T

Lifting height

2050 mm 80"

Min height

330 mm 13"

Platform length

1450mm 57" to 2050mm 80.7"

Power supply

220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW

Release

Pneumatic Lock Release
