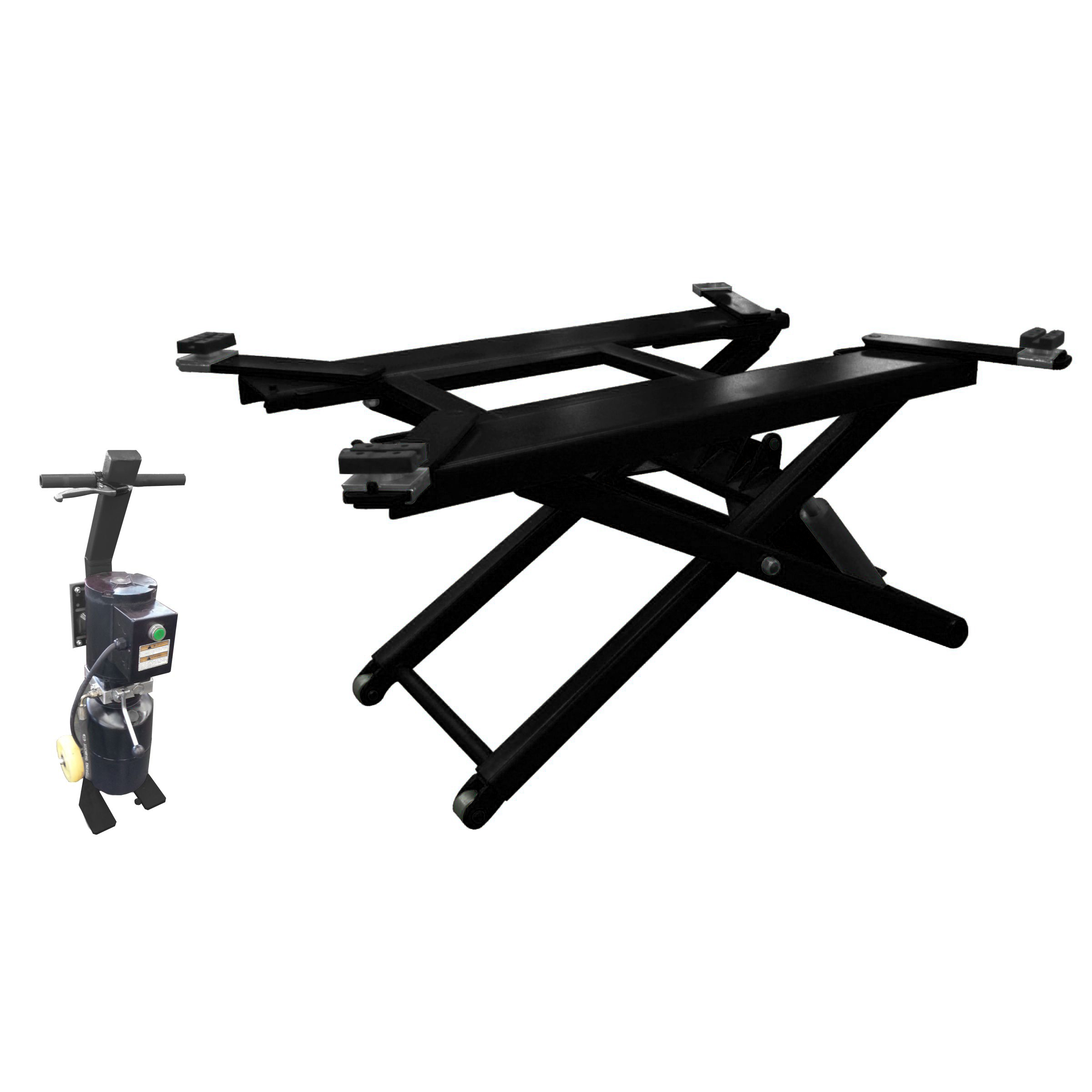

3.0 T Capacity Scissor Lift PL-B30M Ultra-Thin Wheel Free Scissor Lift

The PL-B30M ultra-thin wheel free scissor lift is a portable 3.0 T hydraulic mid-rise scissor frame lift, equipped with twin hydraulic cylinders, pneumatic lock relrese / electromagnetic lowering system desiged to lift cars & light trucks to a comfortable working height of 38.6″. The PL-B30M scissor lift is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.

SKU: PL-B30M Scissor Lift Categories: ,

Description

The PL-B30M ultra-thin wheel free scissor lift is a portable 3.0 T hydraulic mid-rise scissor frame lift, equipped with twin hydraulic cylinders, and a pneumatic lock release / electromagnetic lowering system designed to lift cars & light trucks to a comfortable working height of 38.6″. The PL-B30M scissor lift is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.

Features:
1.Chine Application

A low rise scissor lift can lift each kind of vehicle whose weight is less than 3000kg, suitable for use in vehicle tests, maintenance, and caring for automobiles, which is particularly suitable for use in the basement or on the floor, without construction and hole.

Lifts are designed and built to lift vehicles and hold them in an elevated position in an enclosed workshop. All other uses of the lifts are unauthorized. In particular, the lifts are not suitable for:

-Washing spray work; -Use in outdoors;

-Creating raised platforms for personnel or lifting personnel;

-Use as a press for crushing purposes; -Use as elevator;

-Use as a lift jack for lifting vehicle bodies or changing wheels.

The manufacturer is not liable for any injury to persons or damage to vehicles and other property caused by the incorrect and unauthorized use of the lifts.

2. Structure Features

-Use hidden and thin scissor structure, dispense with construction and ground hole, the occupation is small -Independent control box, low-voltage controlling, good security -Same hydraulic cubage and in-phase cylinder, the synchronization of platform

-With hydraulic lock and mechanical dual-gear safety-claw lock double safety device automatically open when lowering. Lock operation can have the safety-claw located, adversely, safe & reliable.

-Own protection of safety valve and burst-proof equipment for hydraulic failure and overloading. So when the oil pipe bursts, the machine will not fall quickly. -Sliding blocks adopt oil-free super-wearable materials.

-Use high quality hydraulic or electric element parts made in Italy, Germany, Japan, and so on.

-Own manual lowering operation when the power is cut.

3. Equipment

-Machine basement (The position and space of equipment installation)

-Machine frame (The main structure of lift and insurance institution)

-Control box (Machine-controlled part)

4. Frame Make of base plate, connecting rod, main lifting platform, hydraulic oil cylinder, and loading dock board

Additional information

Product

Scissor Lift

Product Code

PL-B30M Scissor Lift

Capacity

3.0 T

Lifting height

980 mm 38.6"

Min height

180 mm 7.1"

Platform length

1600 mm 63"

Power supply

220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW

Release

Manual Lock Release
