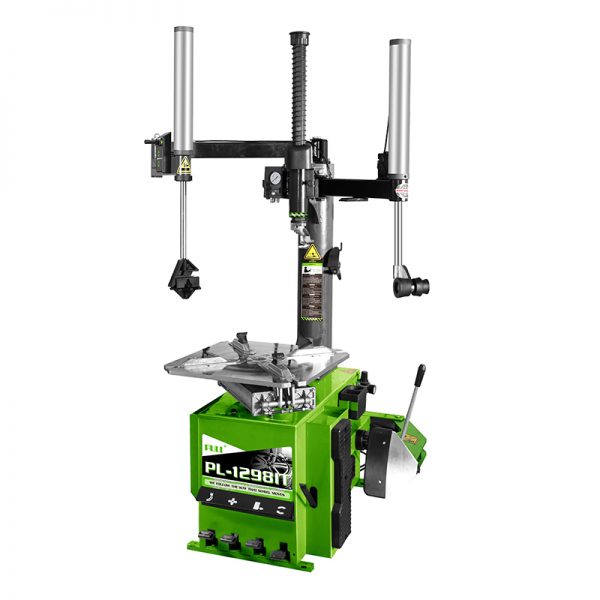

PL-1298IT Semi-Automatic Swing Arm Tire Changer

PL-1298IT tire changer machine represents the Unite entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, Unite experience, and a classic well-known operating mode.



SKU: PL-1298IT Categories: , ,

Description

PL-1298IT tire changer machine represents the Unite entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, Unite experience, and classic well-known operating mode.

Features:

1. Pneumatic locking device between the vertical arm and 098 help arm, patent unique function make the locking operation is extremely easy
2. Semi-automatic swing arm
3. Clamping jaws are totally one-step die casting
4. The round column is used as the air tank
5. Quick air booster, esp. suitable for low profile tyres
6. RIM CLAMPING METHOD:28″ enlarged turntable and high power motor, which increase working strength

009 MULTI-FUNCTION LEFT HELP ARM
* 360° rotary tyre pressing help arm, combined tyre pressing head has functions of lifting tyre, pressing tyre and central positioning.
* Central positioning function which can make wheel and turntable homocentic
* Function of lfting tire makes it easily to raise the low profile tires

INTERNATIONAL PATENT RIGHT 098 HELP ARM:
SIMPLE, RELIABLE AND STABLE
* The nylon pressing roller helps to build a little space 2-3mm between the rim and the bird’s head, to avoid the metal bird head scratching the rim.
* Easy to operate, one man can dismantle big tire easily, such as the tire for BMW 7series

Additional information

External clamping

12~26"

Internal clamping

14~28"

Max.Wheel diameter

≤1143mm (45")

Max.Wheel width

≤406mm (16")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

900*1130*950mm (3.0*3.7*3.1ft)

N/G weight(main body)

254/310 kg (559/682 lbs)
